| Quantity: | |
|---|---|
Model NO. | DF-T26 |
Size | Small |
Structure | Unmanned Rotorcraft |
Take of Weight | Max:63kg |
Spraying System | Pressure Spray |
Motor | 6 |
Transport Package | Special Packaging |
Trademark | Sinachip |
HS Code | 8806949010 |
Operating Radius | Short Range |
Usage | Agricultural |
Operating System | Fully Autonomous/Ab Point/Manual |
Spray Width | 4-6meter |
Operational | 1-3 Acrest Min |
Spraying Flow Rate(Max) | 4L/Min |
Specification | folded: |
Origin | China |
Production Capacity | 30000 PCS/Year |
Package | Carton Size | 900×1140×1090mm |
Carton Weight(Gross Weight) | 85kg | |
Aircraft Frame | Motor | 6 |
Symmetrical Motor | 1860mm | |
Spreaded Size(No Rotors) | 2000×2000×790mm | |
Folded Size | 1200×1100×790mm | |
Motor | Model | D9 |
KV | 110kv | |
Max Pulling Force | 21.5kg | |
Max Power | 3600W | |
Electrical Control | Max Current | 120A |
Voltage | 44.4V(standard) | |
Pulse Width | 1100us-1940us | |
Foldable Propellers | Material | Polymer+Carbon Fiber |
Diameter | 3295mm | |
Screw Pitch | 78mm | |
Spraying System | Tank Volume | 25L |
Nozzle Model | XR110015VS | |
Nozzle Quantity | 6 | |
Spraying Flow Rate(Max) | 4L/min | |
Spraying Width(Depending On Height) | 4-6m | |
Atomized Particle | 130-250um | |
Max Pressure of Pump | 0.8Mpa | |
Max Power of Pump | 35W | |
Flight Parameters | Whole Unit Weight(Without Battery) | 18.25kg |
Max Take off Weight | 63kg | |
Hovering Accuracy | Horizontal:±0.8m Vertical:0.5m | |
Fullload Hovering Time | 10min | |
No load Hovering Time | 24min | |
Max Flight Speed | 10m/s | |
Recommended Flight Temperature | 0-50℃ | |
Efficiency | 25acres/h | |

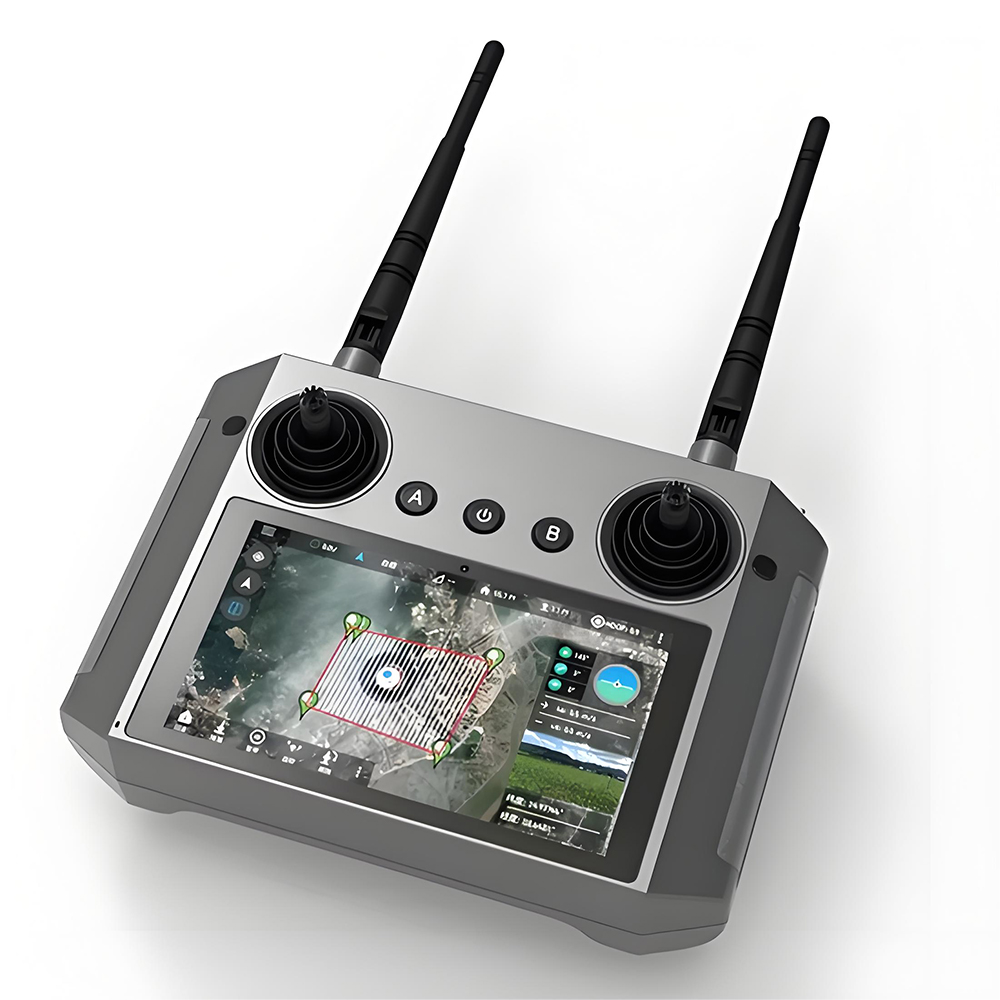

Remote Controller | Frequency | 2.400-2.483 GHz |
Effective Distance(Without Interference) | 3km | |
Rated Voltage | 3.7V | |
Battery Capacity | 10000mAh | |
Weight | 1.05kg | |
Supported Language | Chinese / English / Others | |

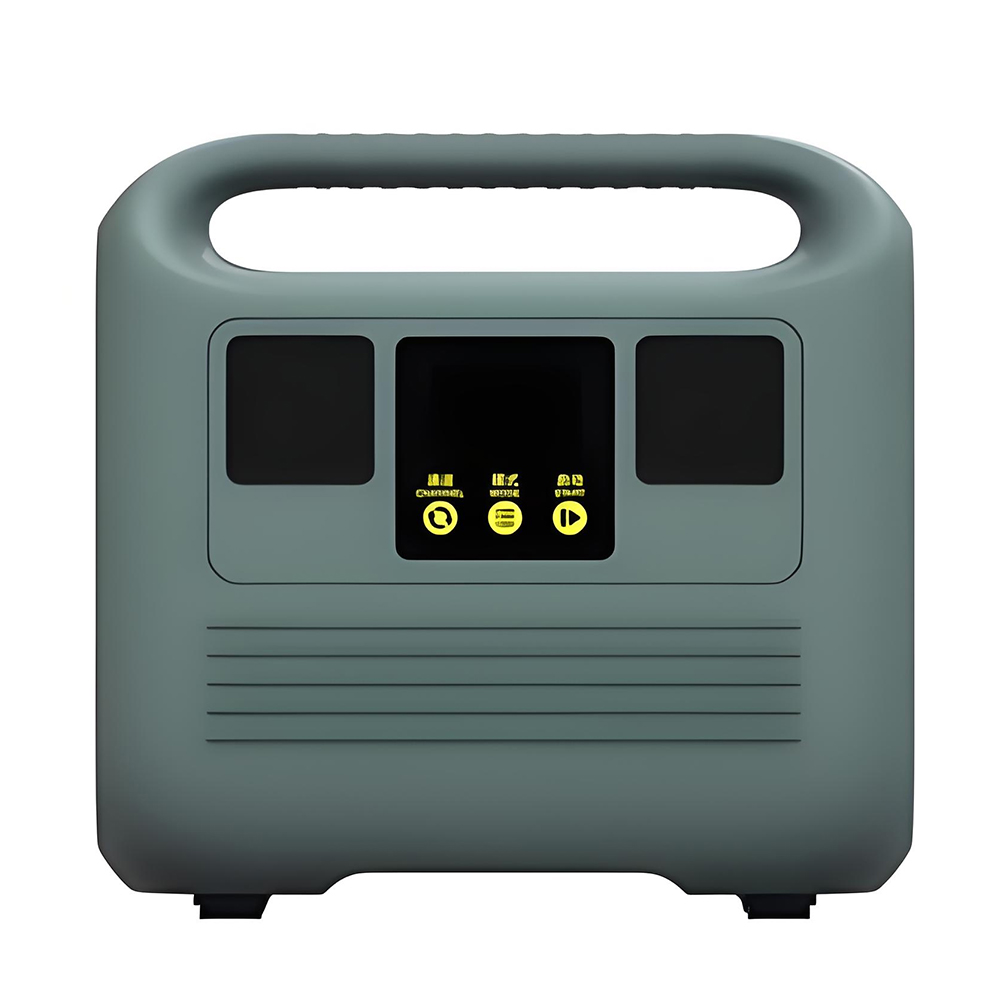

Battery Charger PC2500 | Input | 100-240V 50/60HZ |
Output | 2500W/1200W | |
Channels | Multi-Channel | |
Size | 294×139×282mm | |
Weight | 5.6Kg | |
Battery | Voltage | 51.8V(Standard) |
Volume | 14S 22000mAh | |
Size | 174*117*238mm | |
Weight | 7.4kg/pc |
