| Quantity: | |
|---|---|
Model NO. | DF-C50 |
Size | Small |
Structure | Flapping-Wing UAV |
Spraying Flow | Max.10kg/Min |
Weight | 38kg (Including Battery:13kg) |
Spray Width | 6-9meter |
Trademark | Sinachip |
HS Code | 88069 49010 |
Operating Radius | Medium Range |
Usage | Agricultural |
Charging Time | 15-20min |
Water Pump Pressure | 1MPa |
Flight Speed | 3-8meter/S |
Specification | folded:1010*760*780mm |
Origin | China |
Production Capacity | 3000 Set/Year |
Product Description
Model | T10 | T16 | D16 | T26 | C50 |
Aircraft Frame |
|
|
|
|
|
Frame size(without propeller) | 104*104*56cm | 109*109*68cm | 171*171*57cm | 200*200*79cm | 171*134*70cm |
Folded size | 55*55*56cm | 70*70*68cm | 100*100*57cm | 120*110*79cm | 101*76*78cm |
Motor System |
|
|
|
|
|
Motor quantity | 4 | 4 | 6 | 6 | 4 |
Max pulling force | 15.5Kg | 19.2Kg | 15.3Kg | 21.5Kg | 29Kg |
Max power | 2800W | 1200W | 2800W | 3600W | 7200W |
Spray System |
|
|
|
|
|
Tank volume | 10L | 16L | 16L | 25L | 50L |
Nozzle quantity | 4 | 4 | 4 | 8 | 4 |
Spray flow rate(Max) | 4L/Mins | 5L/Mins | 5L/Mins | 8L/Mins | 10L/Mins |
Spray width | 3-5m | 3-5m | 4-6m | 6-8m | 6-9m |
Flight Parameters |
|
|
|
|
|
UAV weight(without battery) | 12.3Kg | 16.5Kg | 15.5Kg | 18.25Kg | 25Kg |
Max take-off weight | 32Kg | 42Kg | 48Kg | 63Kg | 93Kg |
Full-load hovering time | 10Mins | 10Mins | 10Mins | 10Mins | 10Mins |
No-load hovering time | 20Mins | 23Mins | 25Mins | 24Mins | 35Mins |
Max flight speed | 10m/s | 10m/s | 10m/s | 10m/s | 10m/s |
Recommended temperature | 0-55℃ | 0-55℃ | 0-55℃ | 0-55℃ | 0-55℃ |
Efficiency | 13.5acres/h | 20acres/h | 20acres/h | 25acres/h | 30acres/h |
RC(Remote Control) |
|
|
|
|
|
Work frequency | 2.4-2.483GHZ | 2.4-2.483 GHz | 2.4-2.483GHz | 2.4-2.483 GHz | 2.4-2.483GHz |
Effective distance | 3KM | 3KM | 3KM | 3KM | 3KM |
Support language | Multi-language | Multi-language | Multi-language | Multi-language | Multi-language |

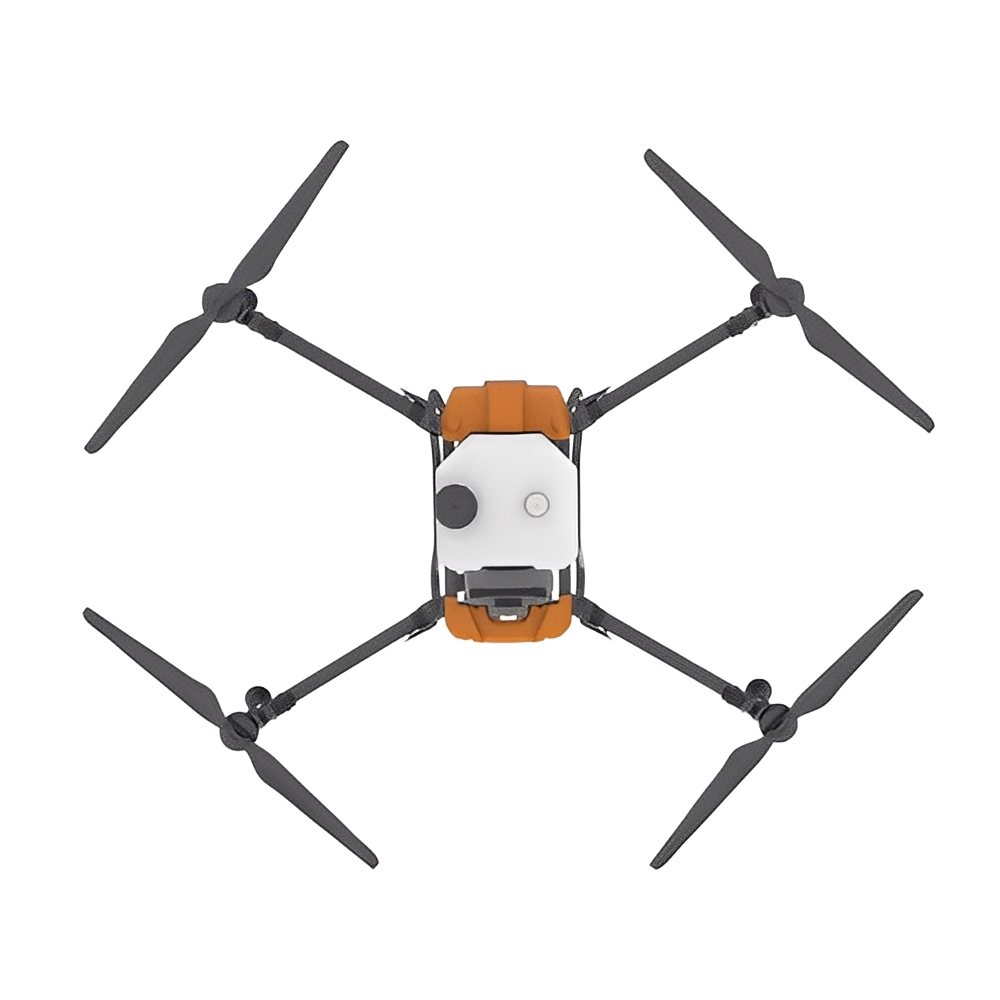

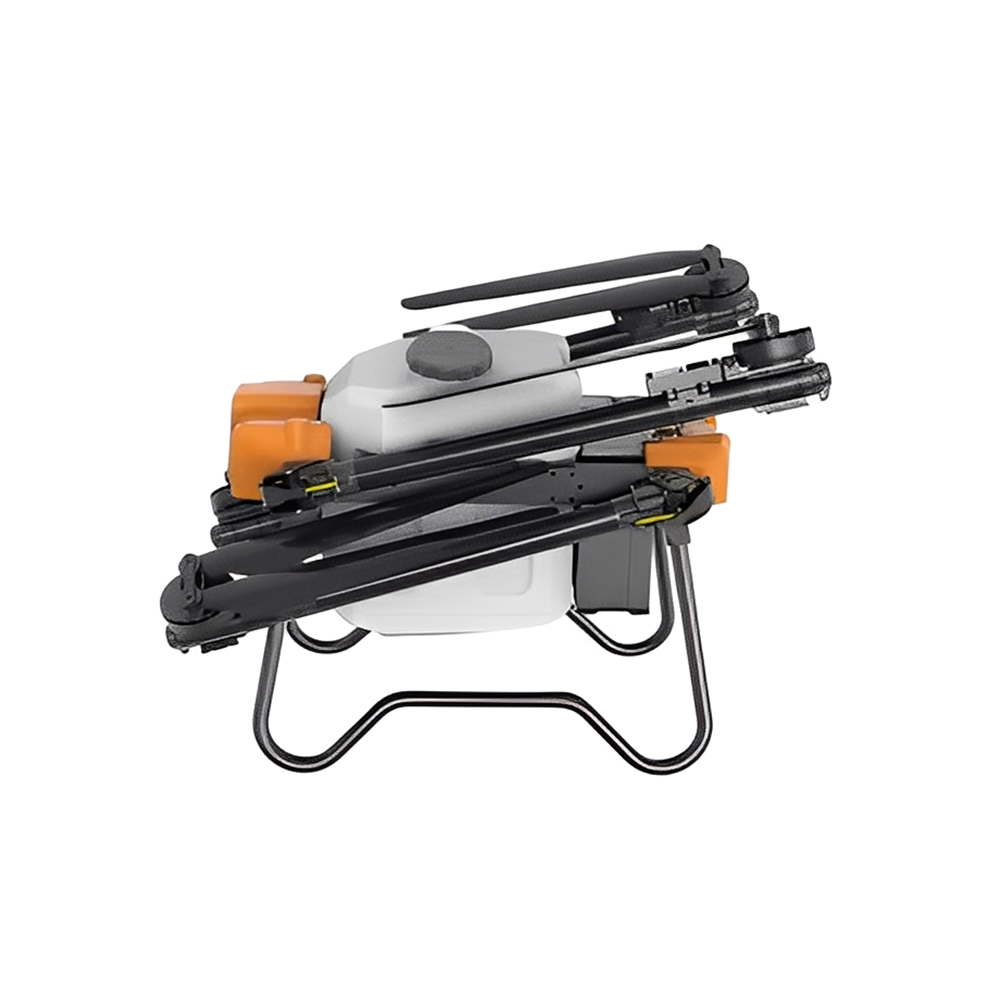

Wrap-around folding design
4 rotors design which is more stable and firm during spray woking,
Wrap-around folding design can keep transportation convenient and space saving.
The aircraft frame is made of carbon fiber material, which is lightweight and durable enough.
Y type anti-drift nozzle
Equipped with 4 high pressure Y-type nozzles on each arm/axis, or 2 Centrifugal nozzles, provide a wide, even coverage of the treated area Increased the spray width to 6-9 meters and higher efficiency.
Radar system
Advanced radar system is capable of detecting both day and night operating conditions without exposure to light or dust.
The level of flight safety has been improved with front collision avoidance and a 100° horizontal field of view (FOV)
The drone detects the angle of the surface and automatically adapts to it even when operating in mountainous terrain.

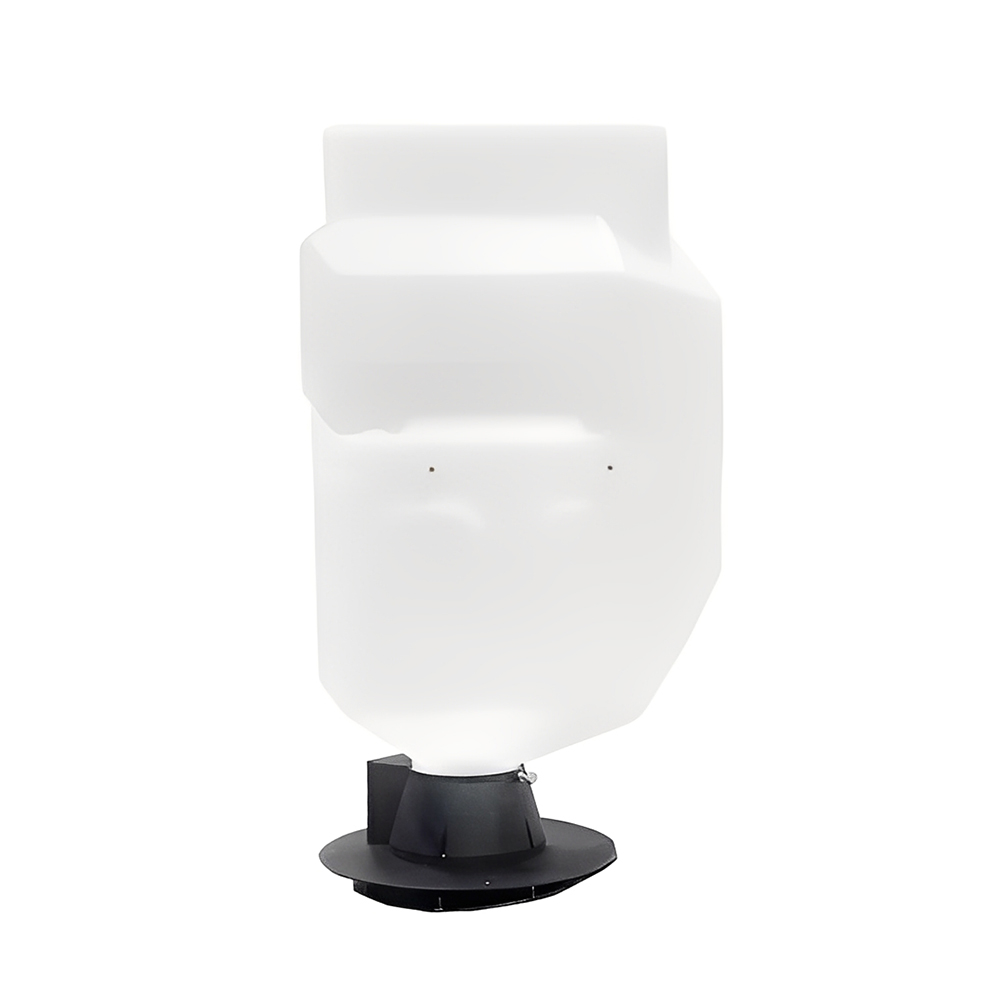

Spreading System
With an optional 70 spreading system, DF-C50 could have two functions on one drone.
This advanced form of planting can be used for a variety of applications, including lawn seeding, granular fertilizer distribution, fish and shrimp feed distribution, and more.
The system takes less than three minutes to install, so it's always ready for the task at hand.
RTK system
The built-in high-precision RTK positioning system and RTK keys record waypoints with centimeter accuracy, which greatly improves the reliability of operation and spraying accuracy.
