| Customization: | Available |
|---|---|
| Certification: | ISO9001, FCC, RoHS, CE |
| Height: | Low Attitude |
| Quantity: | |
|---|---|
| Descriptions | Parameter | |
| Package | Carton Size | 800×800×760mm |
| Carton Weight(Gross Weight) | 50kg | |

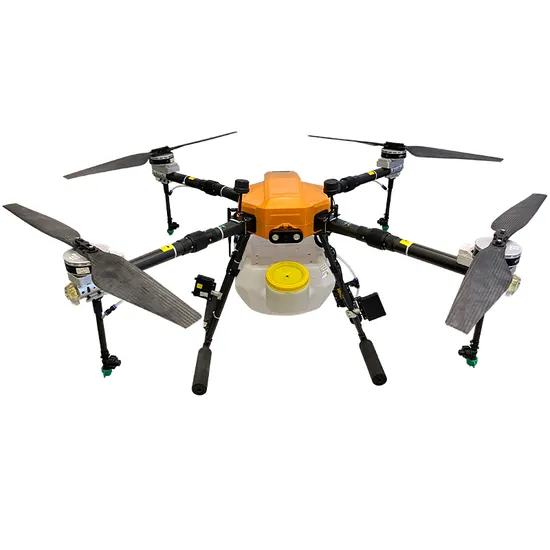

| Aircraft Frame | Rotor | 4 |
| Symmetrical Motor | 1400mm | |
| Spreaded Size(No Rotors) | 1090×1090×682mm | |
| Folded Size | 700×700×682mm | |
| Motor | Model | D9 |
| KV | 110kv | |
| Max Pulling Force | 21.5kg | |
| Max Power | 3600W | |
| Electrical Control | Max Current | 120A |
| Voltage | 44.4V(standard) | |
| Pulse Width | 1100us-1940us | |

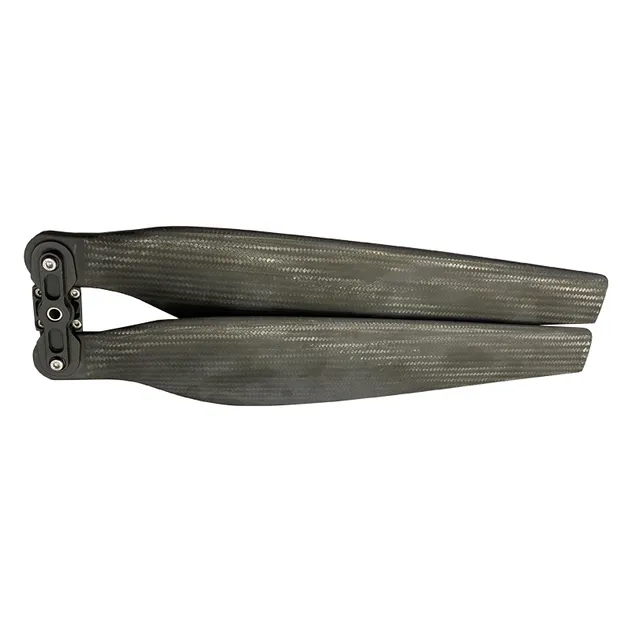

| Foldable Propellers | Material | Polymer+Carbon Fiber |
| Diameter | 34.7inches | |
| Screw Pitch | 11 inches | |

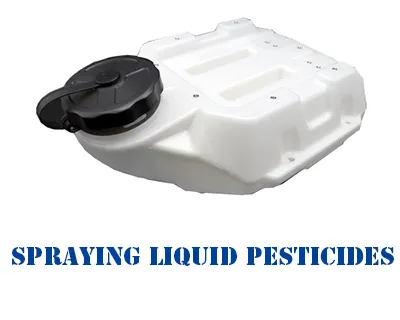

| Spraying System | Tank Volume | 16L |
| Nozzle Model | XR110015VS | |
| Nozzle Quantity | 4 | |
| Spraying Flow Rate(Max) | 4L/min | |
| Spraying Width(Depending On Height) | 4-6m | |
| Atomized Particle | 130-250um | |
| Max Pressure of Pump | 0.8Mpa | |
| Max Power of Pump | 35W | |
| Flight Parameters | Whole Unit Weight(Without Battery) | 16.5kg |
| Max Take off Weight | 42kg | |
| Hovering Accuracy | Horizontal:±0.8m Vertical:0.5m | |
| Fullload Hovering Time | 10.5min | |
| No load Hovering Time | 23min | |
| Max Flight Speed | 10m/s | |
| Recommended Flight Temperature | 0-50℃ | |
| Efficiency | 20acres/h | |

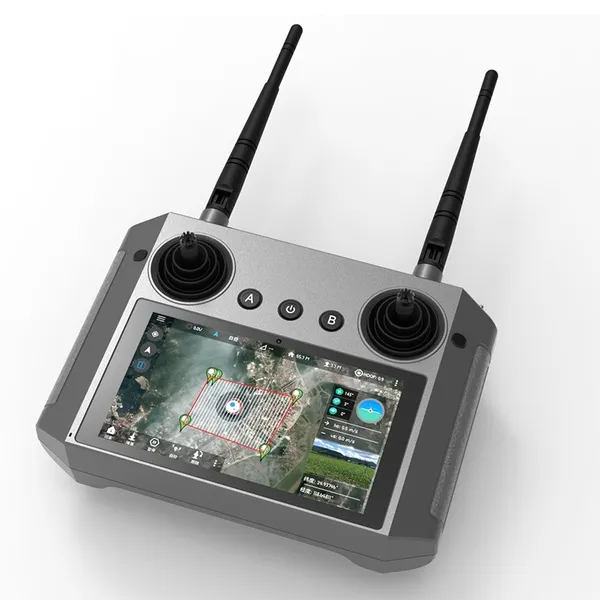

| Remote Controller | Frequency | 2.400-2.483 GHz |
| Effective Distance(Without Interference) | 3km | |
| Rated Voltage | 3.7V | |
| Battery Capacity | 10000mAh | |
| Weight | 1.05kg | |
| Supported Language | Chinese / English / Others | |

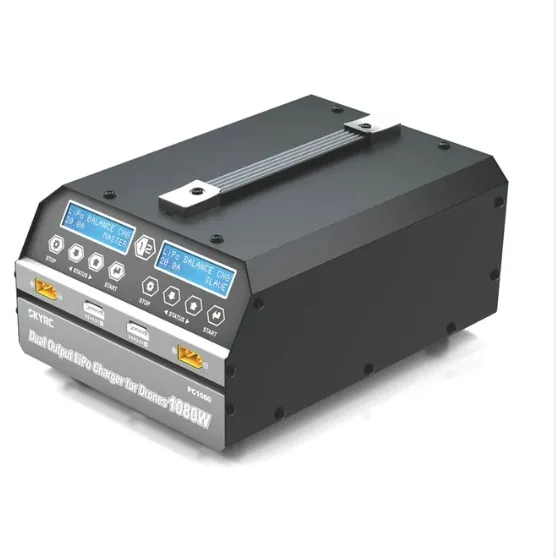

| Battery Charger | Input | 100-240V 50/60HZ |
| Output | 540W*2 | |
| Channels | Two-Channel | |
| Size | 241x139.5x63.5mm | |
| Weight | 4.88Kg | |
| Battery | Voltage | 44.4V(Standard) |
| Volume | 6S 22000mAh | |
| Size | 200×90×65mm | |
| Weight | 2.7kg/pc |
