| Customization: | Available |
|---|---|
| Type: | Agricultural Drone |
| Usage: | Agricultural Products Processing, Crop Spraying |
| Quantity: | |
|---|---|
| Package | Carton Size | 900×1140×1090mm |
| Carton Weight(Gross Weight) | 67KG | |
| Aircraft Frame | Motor | 6 |
| Symmetrical Motor | 1630mm | |
| Spreaded Size(No Rotors) | 1710×1710×570mm | |
| Folded Size | 1000×1000×570mm | |
| Motor | Model | D8 |
| KV | 100kv | |
| Max Pulling Force | 15.3kg | |
| Max Power | 2800W | |
| Electrical Control | Max Current | 80A |
| Voltage | 44.4V(standard) | |
| Pulse Width | 1100us-1940us | |
| Foldable Propellers | Material | Polymer+Carbon Fiber |
| Diameter | 30 inches | |
| Screw Pitch | 9 inches | |
| Spraying System | Tank Volume | 16L |
| Nozzle Model | XR110015VS | |
| Nozzle Quantity | 4 | |
| Spraying Flow Rate(Max) | 4L/min | |
| Spraying Width(Depending On Height) | 4-6m | |
| Atomized Particle | 130-250um | |
| Max Pressure of Pump | 0.8Mpa | |
| Max Power of Pump | 35W | |
| Flight Parameters | Whole Unit Weight(Without Battery) | 15.5kg |
| Max Take off Weight | 48kg | |
| Hovering Accuracy | Horizontal:±0.8m Vertical:0.5m | |
| Fullload Hovering Time | 10min | |
| No load Hovering Time | 25min | |
| Max Flight Speed | 10m/s | |
| Recommended Flight Temperature | 0-50℃ | |
| Efficiency | 20acres/h | |

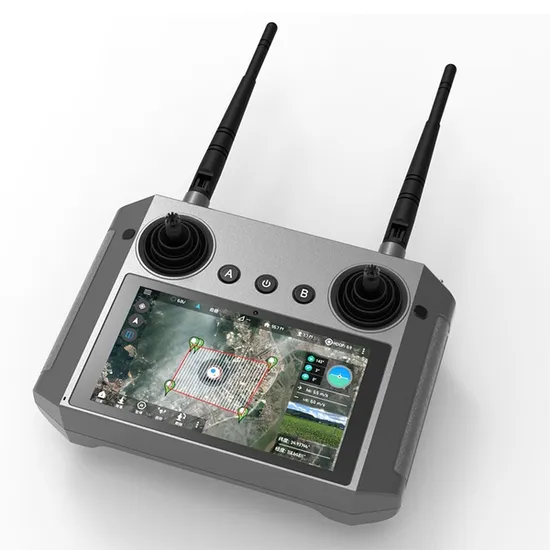

| Remote Controller | Frequency | 2.400-2.483 GHz |
| Effective Distance(Without Interference) | 3km | |
| Rated Voltage | 3.7V | |
| Battery Capacity | 10000mAh | |
| Weight | 1.05kg | |
| Supported Language | Chinese / English / Others | |
| Battery Charger | Input | 540W*2 |
| Output | AC220V : 2500W/ AC120V : 1200W | |
| Channels | Two-Channel | |
| Size | 241x139.5x63.5mm | |
| Weight | 4.88Kg | |

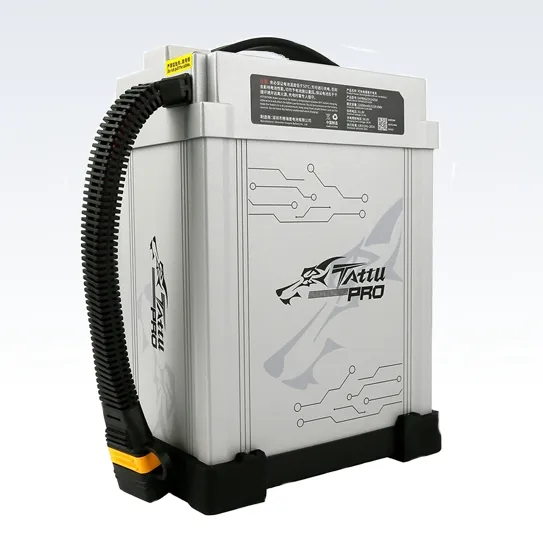

| Battery | Voltage | 44.4V(Standard) |
| Volume | 6S1P 22000mAh | |
| Size | 200×90×65mm | |
| Weight | 2.7kg/pc |
