Df-C50: 50L 4-Axis High-Efficiency Agricultural Spraying Drone - Adjustable Nozzle Remote Control Uav for Farmland Fruit Trees, Wheat & Rice Crop Spraying Tasks

Share to:

Df-C50: 50L 4-Axis High-Efficiency Agricultural Spraying Drone - Adjustable Nozzle Remote Control Uav for Farmland Fruit Trees, Wheat & Rice Crop Spraying Tasks

Customization:	Available
Certification:	ISO9001, FCC, RoHS, CE
Height:	Low Attitude

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DF-C50

Operating Radius

Medium Range

Size

Small

Usage

Agricultural

Structure

Flapping-Wing UAV

Charging Time

15-20min

Spraying Flow

Max.10kg/Min

Water Pump Pressure

1MPa

Weight

38kg (Including Battery:13kg)

Flight Speed

3-8meter/S

Spray Width

6-9meter

Specification

folded: 1010*760*780mm Speaded: 1711*1341*700mm

Trademark

Sinachip

Origin

China

HS Code

8806949010

Production Capacity

3000 Set/Year

Product Description

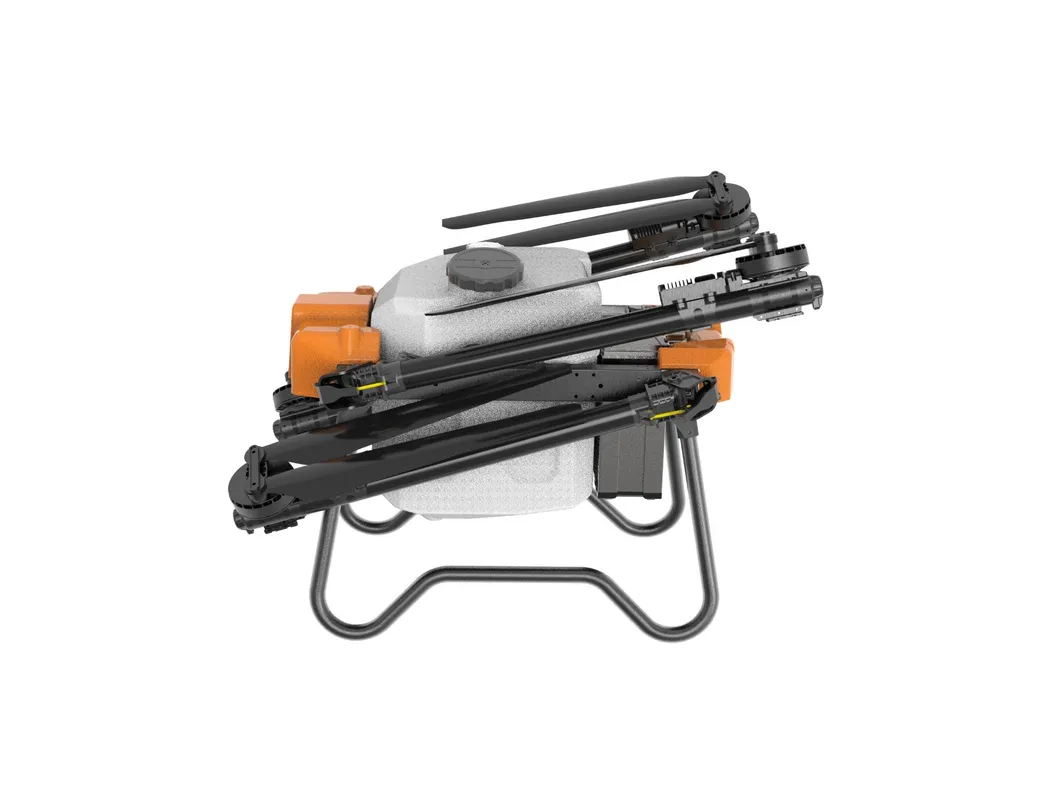

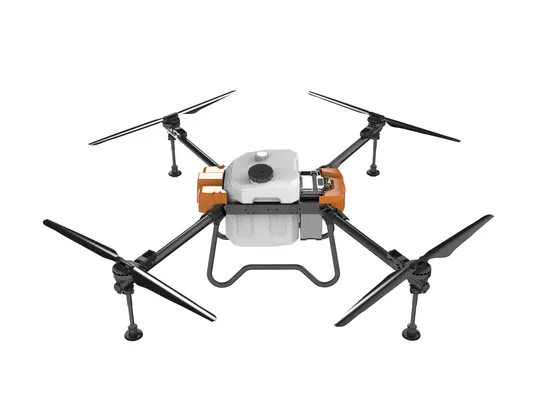

Wrap-around folding design

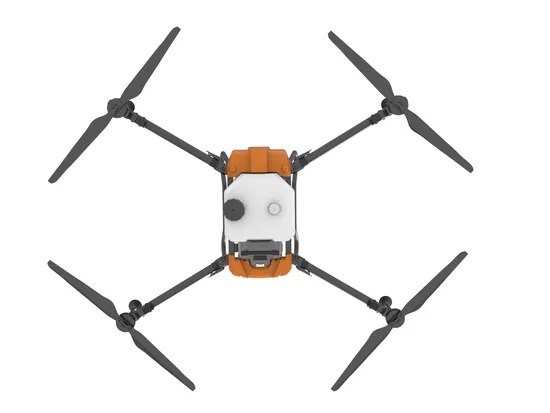

4 rotors design which is more stable and firm during spray woking,

Wrap-around folding design can keep transportation convenient and space saving.

The aircraft frame is made of carbon fiber material, which is lightweight and durable enough.

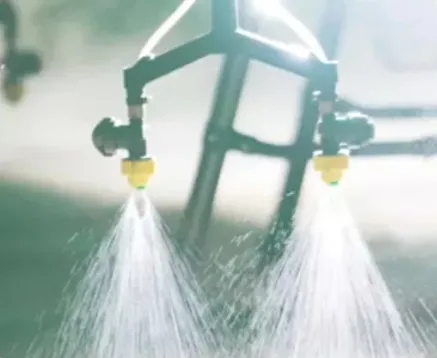

Y type anti-drift nozzle
Equipped with 4 high pressure Y-type nozzles on each arm/axis, or 2 Centrifugal nozzles, provide a wide, even coverage of the treated area

Increased the spray width to 6-9 meters and higher efficiency.

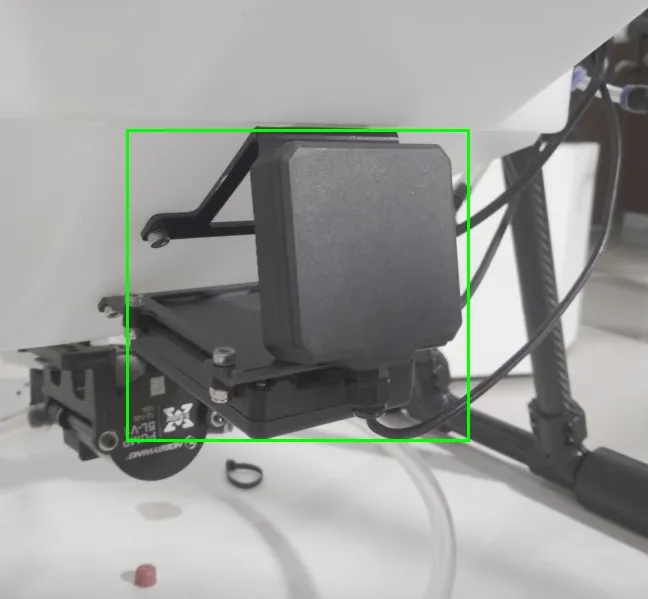

Radar system
Advanced radar system is capable of detecting both day and night operating conditions without exposure to light or dust.

The level of flight safety has been improved with front collision avoidance and a 100° horizontal field of view (FOV)

The drone detects the angle of the surface and automatically adapts to it even when operating in mountainous terrain.

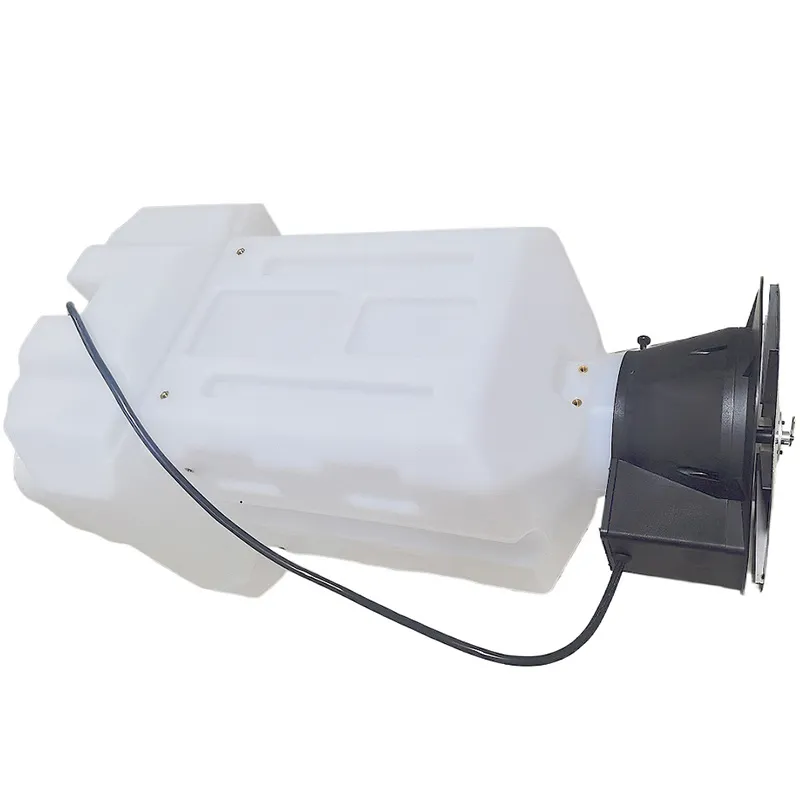

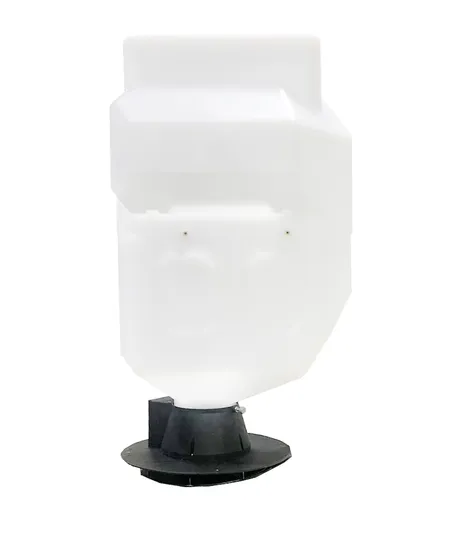

Spreading System

With an optional 70 spreading system, DF-C50 could have two functions on one drone.

This advanced form of planting can be used for a variety of applications, including lawn seeding, granular fertilizer distribution, fish and shrimp feed distribution, and more.

The system takes less than three minutes to install, so it's always ready for the task at hand.

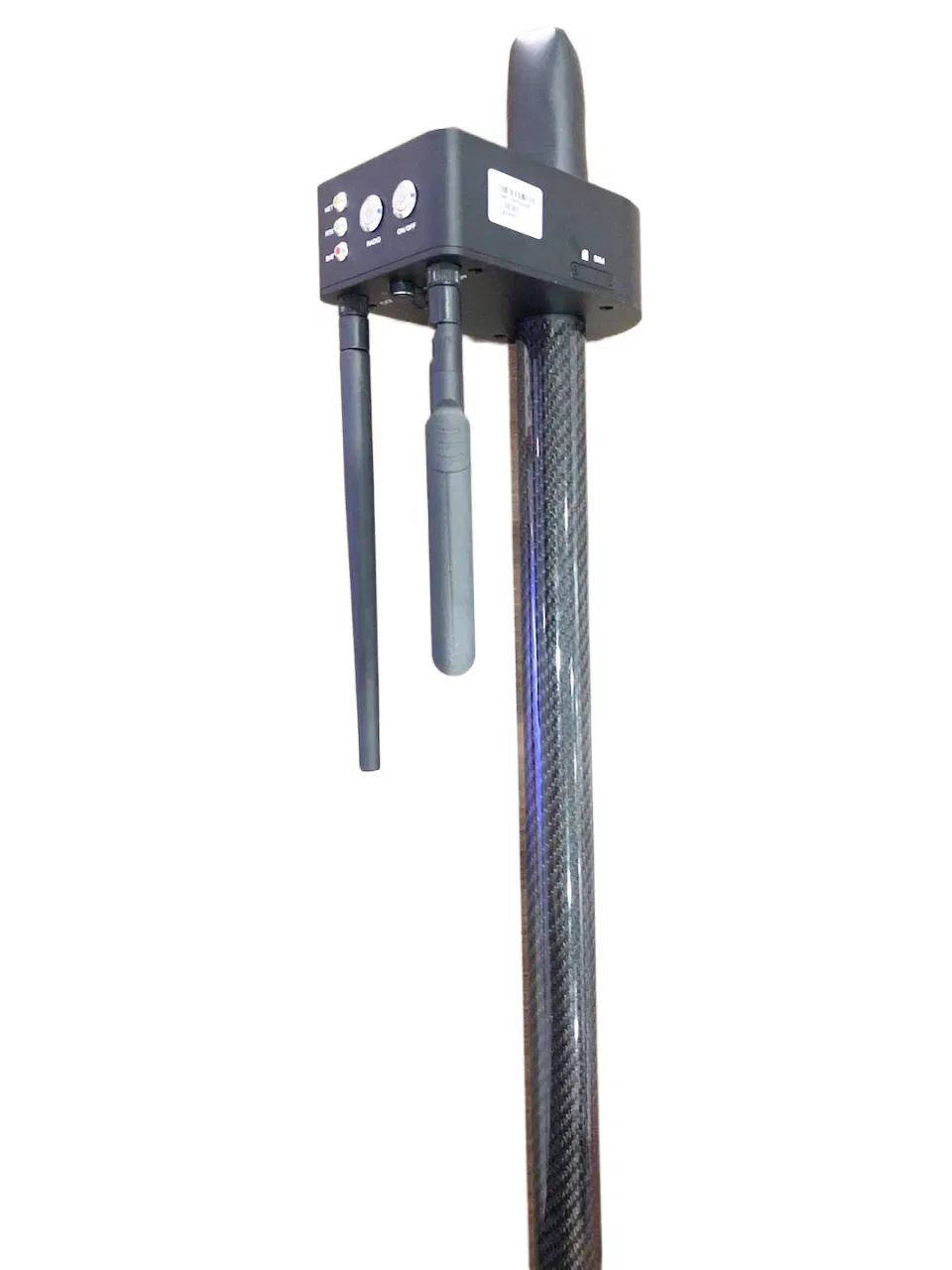

RTK system
The built-in high-precision RTK positioning system and RTK keys record waypoints with centimeter accuracy, which greatly improves the reliability of operation and spraying accuracy.
