| Customization: | Available |
|---|---|
| Certification: | ISO9001, FCC, RoHS, CE |
| Height: | Low Attitude |
| Quantity: | |
|---|---|
| Descriptions | Parameter | |
| Package | Carton Size | 800×800×760mm |
| Carton Weight(Gross Weight) | 50kg | |
| Aircraft Frame | Rotor | 4 |
| Symmetrical Motor | 1400mm | |
| Spreaded Size(No Rotors) | 1090×1090×682mm | |

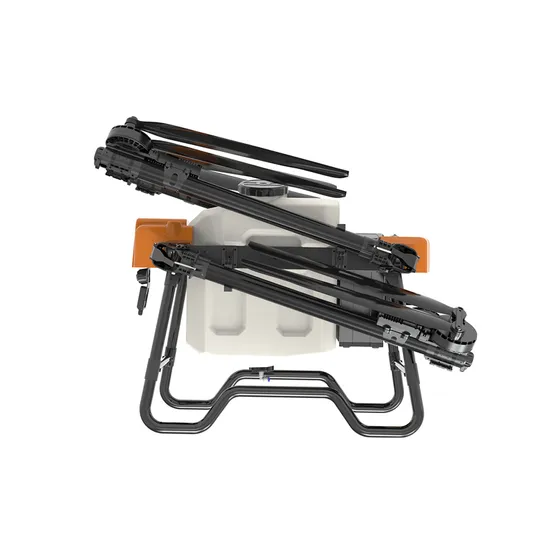

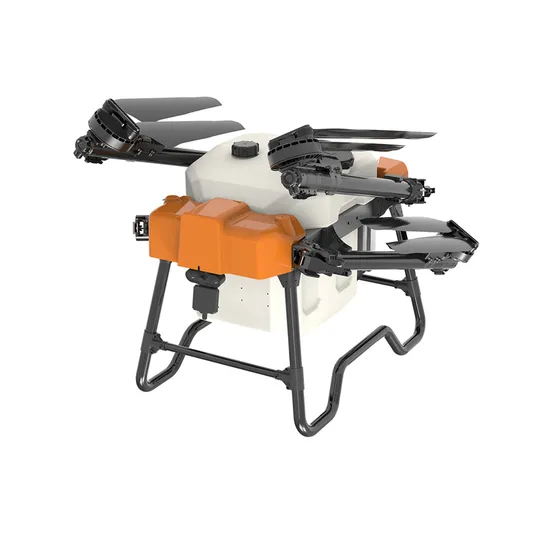

| Folded Size | 700×700×682mm | |
| Motor | Model | X13 |
| KV | 45KV | |
| Max Pulling Force | 57kg | |
| Max Power | 5000W | |
| Electrical Control | Max Current | 200A |
| Voltage | 81V | |
| Pulse Width | 1050us-1950us | |
| Foldable Propellers | Material | Polymer+Carbon Fiber |
| Spraying System | Tank Volume | 70L |
| Nozzle Quantity | 4 | |
| Spraying Flow Rate(Max) | 8L/min | |
| Spraying Width(Depending On Height) | 9-10m | |
| Atomized Particle | 130-250um | |
| Max Pressure of Pump | 0.8-1Mpa | |
| Flight Parameters | Whole Unit Weight(Without Battery) | 16.5kg |
| Max Take off Weight | 42kg | |
| Hovering Accuracy | Horizontal:±0.8m Vertical:0.5m | |
| Fullload Hovering Time | 10.5min | |
| No load Hovering Time | 23min | |
| Max Flight Speed | 10m/s | |
| Recommended Flight Temperature | 0-50℃ | |
| Efficiency | 20acres/h | |
| Remote Controller | Frequency | 2.400-2.483 GHz |
| Effective Distance(Without Interference) | 3km | |
| Rated Voltage | 3.7V | |
| Battery Capacity | 10000mAh | |
| Weight | 530g | |
| Supported Language | Chinese / English / Others | |
| Battery Charger | Input | 100-240V 50/60HZ |
| Output | Max 7200w | |
| Channels | Two-Channel | |
| Size | 653×389×420mm | |
| Weight | 21.2KG | |
| Battery | Voltage | 68.4V |
| Volume | 40000mAh | |
| Size | 121(T)×267(W)×370(H)mm | |
| Weight | 17.25kg/pc |
